Rosback 220B / 223B - Perforator/Scorer/Slitter
The Rosback 220B and 223B Trueline machines are the fastest, most accurate machines in their class. Heavy duty frames and shafts are guaranteed to produce high quality, precision output that competing machines cannot match. Variable speeds up to 24,000 feet per hour make short work of large jobs. Micro perforation, digital crack free scoring, slitting, and many other operations are quick and easy on these versatile units.
The Model 220B has 20" cutting shafts, while the Model 223B has 26" shafts and shaft supports for demanding applications. Models are available in both friction and vacuum feed, and feature a variety of delivery options. Built with the structural integrity and performance capabilities that are synonymous with the name "TrueLine" – a name recognized in the industry for nearly 50 years.

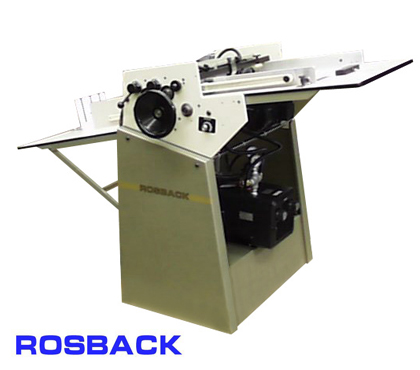

Shown is the vacuum feed model with included pump.
- Precision adjustable depth control for scoring and perforating
- Micrometer side-guide adjustment
- Micrometer skewing adjustment with positive lock
- Variable speed from 1,000 to 24,000 feet per hour
- Large safety handwheel for ease and convenience
- Standard delivery tray included
- Very low maintenance, with parts made and stocked in North America.
Specifications 220B
Maximum sheet size: 20" W x 23" L / Minimum sheet size: 3" W x 3" L / Minimum space between lines of perf: 0.75" (0.5" available)
Dimensions
Machine Size: 32" D x 55" W x 42" H / Weight: 275 lbs. (vacuum model: 365 lbs.)
Specifications 223B
Maximum sheet size: 26" W x 26" L / Minimum sheet size: 3" W x 3" L / Minimum space between lines of perf: 0.75" (0.5" available)
Dimensions
Machine Size: 38" D x 61" W x 44" H / Weight: 335 lbs. (vacuum model: 425 lbs.)
Electrical for All
115 VAC 60 Hz
