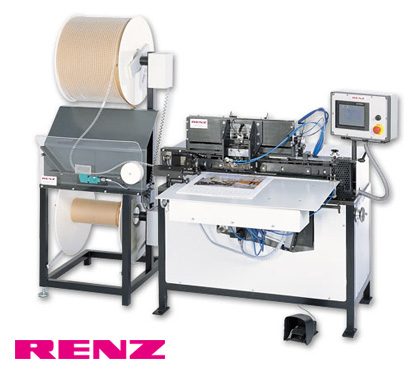

Renz Autobind 700 - 27.5" Wire Binder
The RENZ Autobind 700 is a semi-automatic binding machine for processing RENZ RING WIRE from spools for books, calendars, and skip-binding.
By pressing the foot pedal the book is clamped and the binding table moves forward into the closing bars and the binding is closed.
The KAS (calendar hanger tool) is required for producing calendars.
Straight wire pieces are formed into the hanger shape and then automatically guided into the wire before closing. By this patented RENZ-technology manual preparing and manual inserting of the calendar hanger is a thing of the past.
The main control panel uses touch-screen technology. The screen clearly displays all current machine data, menus for adjustment and operation and – if necessary – error messages.
- For book, calendar, and skip-binding
- High binding output
- The transport chain maintains accurate position of the wire comb elements
- The machine is designed for heavy-duty and continuous operation
- Short and easy set-up for diameter change
- Working in sitting position possible, this guarantees longer working without fatigue
- Quality “Made in Germany”
Specifications
Mechanical cycles per hour: 1,200 / Pitch: 3:1, 2:1, optional 4:1 / Binding thickness: 0.039" - 0.79" / Binding element diameter: 3/16" - 1" / Min. binding width: 2.36" / Max. binding width: 27.55" / Min. unbound edge: 3.94" / Max. unbound edge: 27.55" / Binding operation: Foot pedal
Dimensions
Size: 6.9 feet L x 5.2 feet D x 5.4 feet H / Weight: 495 lbs.
Electrical
230 VAC 1-phase 60 Hz
Compressed Air Required
12 cfm at 110 psi
