Morgana DigiFold Pro

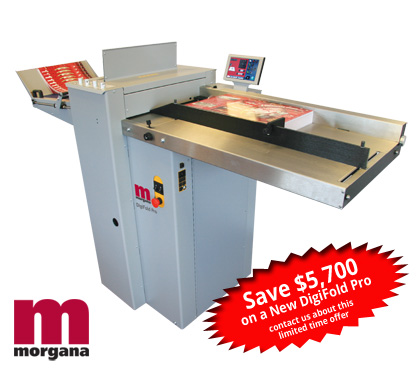

Morgana DigiFold Pro Creaser/Folder



The DigiFold Pro is an automatic creasing / folding machine designed specifically for the professional digital or litho printer who has a need to crease and fold digitally printed, heavy weight or cross grained stock.

Creasing versus Scoring.

Traditional rotary scoring machines use circular blades that are in constant motion as the stock passes through them. This creates a ploughing action that actually cuts through the top fibres of the paper or card in order to create a score. Inevitably this weakens the paper and encourages cracking. In contrast, the Morgana DigiFold Pro employs a unique creasing rule and matrix, the DynaCrease, that eliminates tearing and therefore, cracking.

The DigiFold Pro uses patented flying knife technology which was developed to prevent the scuffing and marking on digital stocks that are caused by folding using conventional methods.

Video
Features

- SmartScreen touch screen operation

- Up to 6000 sheets per hour

- Sheet thickness up to 0.015" (approx 150lb cover)

- Alpha-numeric memory

- PosiFeed feed system

- Highly versatile

- 35.4" x 15" with optional extension

- Crease & fold without cracking

Specifications

Specifications

Maximum sheet size: 27.5" L x 15" W (35.4" L x 15" W with optional extension table) / Minimum sheet size: 8.2" x 5.5" / Maximum paper thickness: 0.015" / Minimum paper thickness: 0.004" / Maximum number of folds per sheet: 2 / Maximum number programmed applications: Unlimited alpha numeric / Minimum repeat crease distance: 1.57" / Minimum repeat fold distance: 2.75" / Minimum crease distance from lead edge: 1.96" / Minimum fold distance from lead edge: 1.96" / Minimum crease distance from tail edge: 1.96" / Minimum fold distance from tail edge: 1.96" / Minimum fold length: 2.75" / Speed(A4 in half): Up to 6000 sheets per hour

Dimensions

Size: 79.5” L x 26.7” W x 49.8” H / Weight: 419 lbs.

Electrical

220-240 VAC 1-phase 60 Hz
