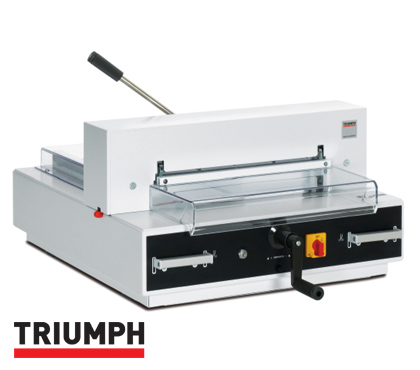

MBM Triumph 4315 Cutter
The Triumph 4315 is a dependable semi-automatic tabletop cutter with electric blade drive, manual fast-action clamp, and EASY CUT blade activation.
The patented EASY CUT electronic blade activation bars for true two-hand operation; electronically controlled front safety guard; safety cover on rear table; main switch and safety lock with key; 24 volt controls (low voltage); patented IDEAL safety drive; automatic blade return from every position; disc brake for instant blade stop; blade changing device covers cutting edge of blade; blade depth adjustment from outside of machine; blade and cutting stick can be changed without removing covers.
Optional stand not shown in photo.
Front Safety Shield
Transparent, electronically controlled, front safety guard
Backgauge Handcrank
The calibrated handcrank is used to set the spindle guided backgauge. The LED display ensures precise positioning.
Easy Cut Blade Activation Bars
Patented EASY CUT blade activation bars ensure true, two-handed operation.
Patented Fast Action Clamp
After inserting the paper stack, throw the lever on the fast-action clamp to tighten—then cut.
Easy Cutting Stick Change
Cutting sticks can be turned or changed easily from the outside of the machine — no tools are required.
Safe Blade Changes
Blade changes can be made without removing machine covers. Handy blade changing device covers the cutting edge of blade.
Specifications
Cutting Width: Up to 16.875″ / Cutting Height: Up to 1.5″ / Cutting Depth: 1.375″ to 17″
Dimensions
Machine Size: 34.25″ D x 25″ W x 14″ H (with clamp lever down) / Shipping Weight: 191 lbs.
Electrical
0.6 HP, 115 VAC 60 Hz
