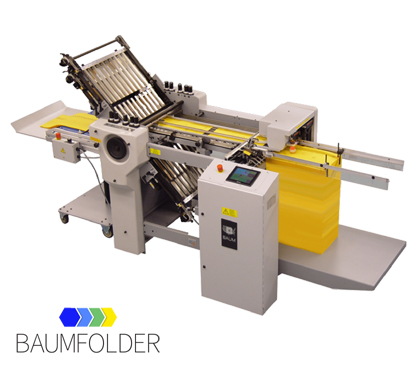

Baum 20 PFF Pile Feed Folding Machine

Baum 20 PFF Pile Feed Folder



The BAUM 20 Pile Feed Folder features sturdy, solid-steel frame construction and an exclusive drive system with both forward and reverse direction for easier loading and unloading.

Front and side air blow are standard to provide complete separation and floatation on all stocks.

Make-ready time is reduced using the exclusive dual front blow bar and the unique leading-edge sheet sensing device.

Video
Features

- Touch Screen control panel

- Baum ifold tutorial standard

- BaumQuick paperless roller gapsets

- Extended mobile delivery stacker

- Built in Batch Counter with variable batch

- Micro-adjustment on fold plates

- Exclusive dual front blow bar

- 1.125" removable slitters shafts

- Quiet-positive helical gear drive

- Non-Contact Pile Height Sensor

- Combination folding rollers

- Total Counter

- Open Access feed Table

- Diagnostic Message Display

Specifications

Specifications

Maximum sheet size: 20.5" W x 33" L / Minimum sheet size: 4" x 6" / Maximum Speed: Up to 8,200 inches per minute

Dimensions

TBA

Electrical

220 VAC 3-phase 60 Hz
