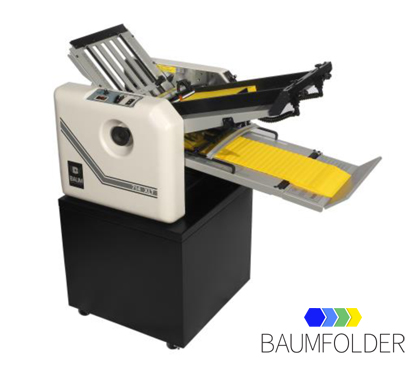

Baum 714 XLT Folder
The Baumfolder Ultrafold 714 XLT air feed tabletop folder combines all the rugged reliability of the larger models in a compact, convenient size.
The 714 XLT is ready to go to work for you anytime and anyplace you need it.
It can easily handle coated stocks as well as high-speed copier and laser-printed stocks.
- Non-marking, continuous feeding with bottom feed system
- Toner resistant and static dissipative folding rollers
- Sealed ball bearings, no lubrication needed
- Removable cartridge design slitter shafts
- Gear-driven folding rollers, no slippage during folding
- Automatic roller tensioning
- Single pump that handles both the vacuum and the air blow
- Rack and pinion gear side guides on feed table to maintain squareness
- Total counter
- Loads and unloads from the same end of the machine
Specifications
Maximum sheet size: 14" W x 20" L / Minimum sheet size: 3" W x 5" L / Maximum Speed: Up to 35,000 sheets per hour / Maximum paper weight: 65 lb. Cover depending on paper grain and hardness
Dimensions
Size: 49” L x 24.5” W x 54" H / Weight: 310 lbs.
Electrical
110 VAC 60 Hz
