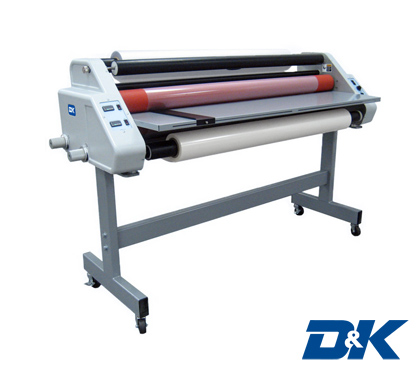

D&K Expression 62+ - Wide Format Laminator
Two Heat Rollers, Standard Temperature Range. Material Widths up to 61".
The Expression (EXP) 62+ Laminator offers the perfect finishing solution for wide format graphics up to 61″ wide.
The EXP 62+ allows you to easily laminate, encapsulate, and mount prints for wide format applications of all types.
This laminator includes a release liner takeup to accommodate both pressure sensitive and thermal/heat activated laminating films.
- Laminate/encapsulate and mount prints up to 61” wide.
- Independent upper and lower temperature adjustments up to 300° F.
- Fast set-up and easy operation.
- Accommodates substrates up to 1/2″ thick.
- Spring-Loaded adjustable pressure.
- Four high-capacity forced air cooling fans.
- Stand and Release Liner Takeup included.
- Available Options: Foot Switch, Inline Slitter Kit
- D&K laminators are made in the USA.
Specifications
Heat Roller(s): Two / Heat Roller Diameter: 4-1/8" / Laminating Speed: 0 to 10 feet per minute / Max. Material Width: 61" / Max. Roller Opening: 1/2" / Max. Temperature: 300 degrees / Film Core: 3" / Max. Film Roll Diameter: 8"
Dimensions
Size: 80” W x 27” D x 50” H / Shipping Weight: 620 lbs.
Electrical
230 VAC 1-phase 30 Amps
