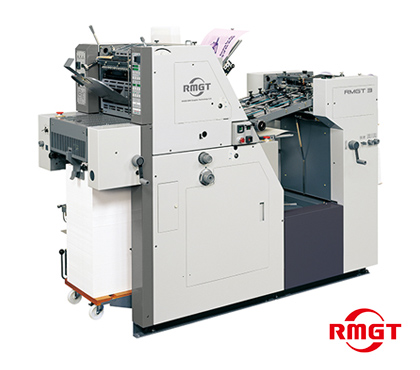

RMGT 340PCX-2 A3-Size Automatic Offset Perfector
The 340PCX-2 is an A3-size blanket-to-blanket type perfecting press embodying RMGT's wealth of expertise in small offset presses.
With a variety of automation and labor-saving devices, lever-less printing operation, and controls concentrated at the delivery section, the 340PCX-2 provides exceptional ease of operation.
- One-button easy operation for the entire series of printing steps: from master insertion, image transfer, sheet feed and printing to master ejection, blanket cleaning and drying.
- Inverter control and pushbutton operation allow continuously variable adjustment of the printing speed from 3,000 to 10,000 S.P.H.
- Blanket-to-blanket type perfecting press on which sheets pass between 2 blanket cylinders.
- Crestline continuous dampening system for easy adjustment of the dampening film.
- Wide printing area of 17.24" L x 12.48" W easily handles printing of cover stock.
- Blanket cleaning device with cleaning solution circulation system (option).
Specifications
Maximum Printing Speed: 10,000 sheets per hour / Maximum Sheet Size: 13.39" W x 17.72" L / Minimum Sheet Size: 3.54" W x 5.12" L / Maximum Printing Area: 12.48" W x 17.24" L / Paper Thickness: 0.0016" to 0.012"
Dimensions
Size: 85" L x 37" W x 58" H / Weight: 2,380 lbs.
Electrical
220 VAC 60 Hz 1-phase 10 Amps
