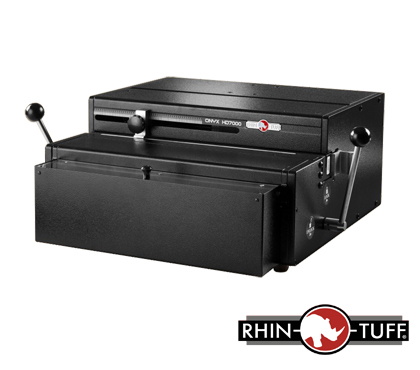

Rhin-O-Tuff Onyx HD7000 - 14" Punching Machine
The HD7000 is a 14-inch open-ended spiral, comb, wire and coil punching machine that features the patented “quick change” die system for changing punch patterns in 30 seconds; no tools required and no bolts or screws to replace or misplace.
The HD7000 was designed with the operator in mind, offering quick, easy set-up including easy pin pulls and pre-set paper stop positions.
Rated up to 40 sheets or up to 80 pages of 20-pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used.
Designed for mid to high volume commercial and corporate use.
- Patented Auto Reverse Feature. Our Overload Detection Feature triggers an auto-reversing function to reduce jamming in the punch.
- All dies for the HD7000 feature our patented swing away die pin retainer system. Allows quick access to all die punch pins while holding them firmly in place. Easily disengage any die punch pin.
- 12 standard interchangeable die patterns available.
- Easy, “Paper to Pin” sight alignment, for balanced hole to edge margins on odd sized applications.
- Uses 14 inch size dies with open sides for wider sheet punching capability.
- Large capacity EZ-View waste tray.
- Smooth, quiet, power on demand operation.
Specifications
Mechanical cycles per minute: up to 25 / Max. punching width: 14" / Max. punching thickness: up to 40 sheets of 80 gsm paper / Punching operation: Foot Pedal or optional Versa Switch or optional Palm Switch
Dimensions
Size: 17" W x 16.75" D x 8" H / Shipping Weight: 91 lbs.
Electrical
115 VAC 60 Hz
