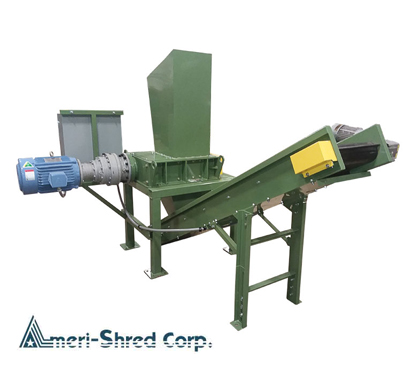

Ameri-Shred DS-21010 / DS-21015 Dual Shaft Shredders
The Ameri-Shred DS-21010 & DS-21015 are high torque, low speed, industrial shredders that efficiently shred a wide range of materials. These features ensure less downtime, noise, and dust emission compared to high-speed two-shaft shredders. Designed for your specific application, everything from the cutter profile to the system layout is carefully considered to ensure you obtain the shred size and throughput you require.
Both models utilize bearing protection that prevents shredded contaminants from reaching the bearings through the use of false walls and seals. These dual shaft shredders include individual cleaning fingers that reduce wrapping and material packing between the cutters. Auto shaft reversal improves online reliability by reorienting material, preventing overfeeding & protecting against damage from foreign objects.
BEARING PROTECTION
Shredded contaminants are prevented from reaching the bearings through the use of false walls and seals.
INDIVIDUAL CLEANING FINGERS
Reduces wrapping and material packing between the cutters, while being easy to remove and adjust.
CUSTOM LAYOUTS
System Engineers will work to ensure the shredder and supports fit seamlessly into your system.
CUTTER DESIGN
The number and length of hooks, as well as cutter width and material are selected to maximize throughput at the required shred size.
AUTO SHAFT REVERSAL
Improves online reliability by reorienting material to grab, preventing overfeeding, and protecting against damage from unshreddable objects.
HIGH TORQUE, LOW SPEED TECHNOLOGY
Efficiently process bulk fed, tough to shred materials. Less downtime, noise and dust emission than high speed shredders.
Specifications
Drive: Electric / Number of Motors: One / DS-21010 = 10 HP motor, DS-21015 = 15 HP motor / Cutter Thickness: 0.625", 0.750", 1.000" / Cutter Material: 4140 HT, AR500 / Cutter Diameter: 7.75" / Hex Shaft Size: 3.5" / Cutting Chamber: 21" L x 16" W
Dimensions
Dependent on application and installation
Electrical
208-230 or 460 VAC 3-phase 60 Hz
