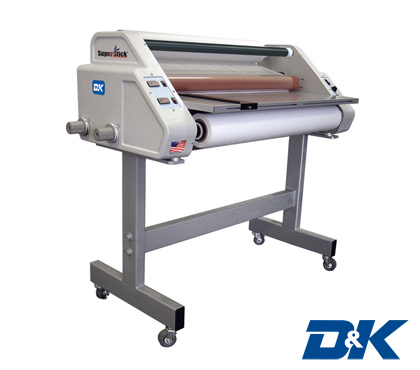

D&K Expression 42+ - Wide Format Laminator
Two Heat Rollers, Standard Temperature Range. Material Widths up to 41".
The Expression (EXP) 42+ Laminator is designed for multi-purpose laminating and mounting of prints up to 41” wide. The EXP 42+ features heavy duty silicone rollers with independent heat adjustment up to 300° F.
This wide format laminator includes a stand, fan bank for cooling thermal films, variable speed motors, and self-locking supply shafts.
- Laminate/encapsulate and mount prints up to 41” wide.
- Independent upper and lower temperature adjustments up to 300° F.
- Fast set-up and easy operation.
- Accommodates substrates up to 1/2″ thick.
- Spring-Loaded adjustable pressure.
- Four high-capacity forced air cooling fans.
- Stand included.
- Available Options: Release Liner Takeup, Foot Switch, Inline Slitter Kit
- D&K laminators are made in the USA.
Specifications
Heat Roller(s): Two / Heat Roller Diameter: 3" / Laminating Speed: 0 to 10 feet per minute / Max. Material Width: 41" / Max. Roller Opening: 1/2" / Max. Temperature: 300 degrees / Film Core: 3" / Max. Film Roll Diameter: 8"
Dimensions
Size: 57” W x 27” D x 50” H / Shipping Weight: 420 lbs.
Electrical
230 VAC 1-phase 30 Amps
